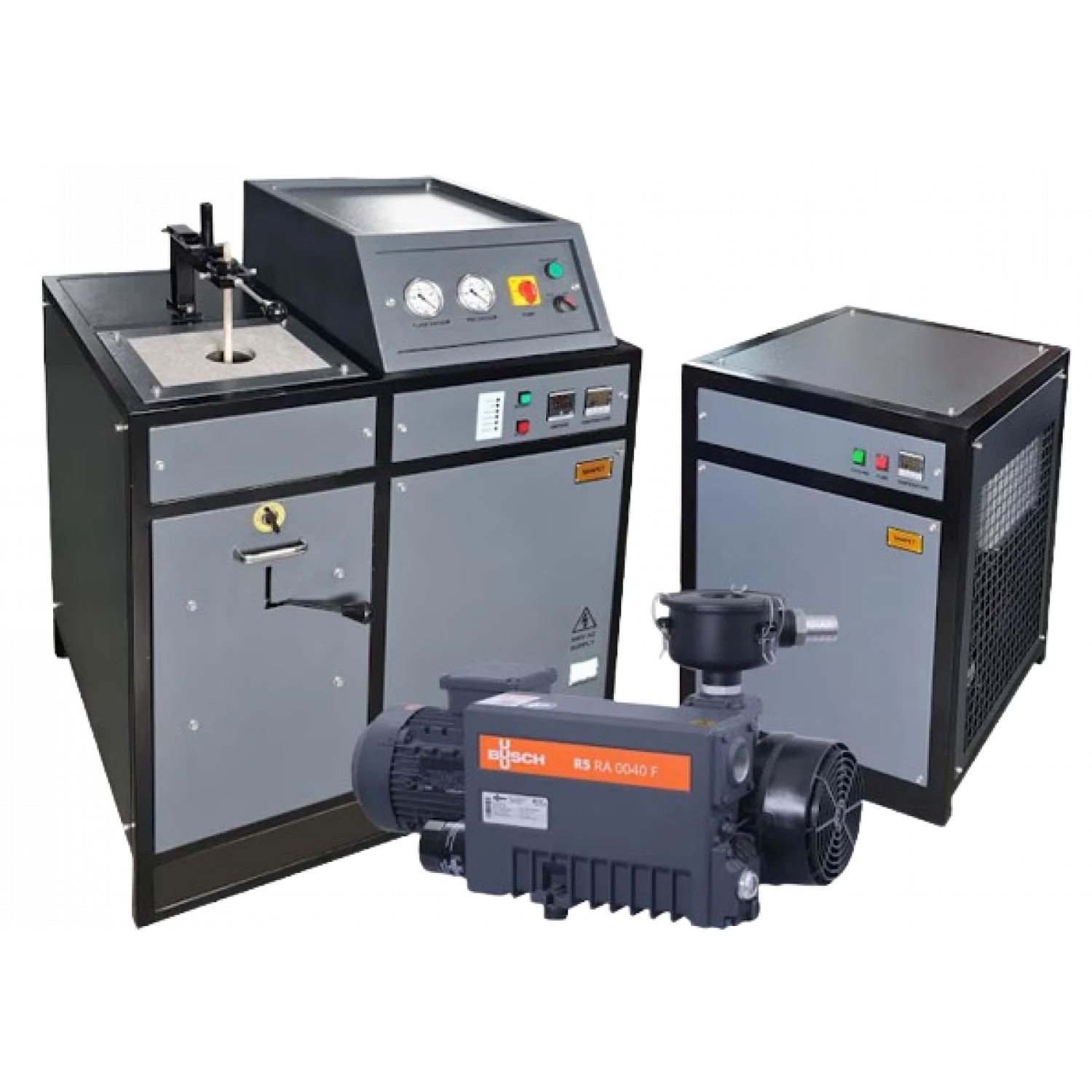

Bottom Pouring Jewelry Casting Machine

AvailabilityIn Stock
CategoryJewelry Casting Machine
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Bottom Pouring Jewelry Casting Machine Details

The Vacuum Bottom Pouring Jewelry Casting Machine is an advanced casting solution designed to deliver high-precision, defect-free jewellery castings. By combining bottom pouring technology with a powerful vacuum system, this machine ensures smooth metal flow, complete mold filling, and minimal porosity, resulting in superior casting quality.

In bottom pouring, molten metal flows upward from the bottom of the crucible, preventing slag and impurities from entering the mold. When supported by vacuum pressure, the system guarantees uniform metal distribution, making it ideal for intricate gold and silver jewellery designs.

Specification

Power SupplierSingle Phase / Three Phase
Voltage230 / 415 V/Ac
Absorbed Power6 - 9 Kw
Capacity of Crucible1Kg, 2Kg, 3Kg
Maximum Temperature1150
Melting Time6 - 10 Minutes
Temperature Measurement1150
Cooling Water Temperature20 - 35
Water Pressure3 Bar
Maximum Water Flow3 Lit/Min

Dimension & Weight

Dimension(mm) L x B x HWeight(kg - Approx)
Chiller610 X 610 X 810Chiller100net
Casting Unit820 X 610 X 1030Casting Unit145net
Vacuum Pump630 X 250 X 360Vacuum Pump51net

Benefits

Vacuum Bottom Pouring Technology for clean and precise casting
Powerful Vacuum System ensures complete mold filling
Reduced Oxidation & Porosity for superior surface finish
High Casting Accuracy for intricate jewellery designs
Durable & Rigid Construction for long-term performance
User-Friendly Controls for safe and easy operation
Compatible with Gold, Silver & Alloys

Highlights

Cleaner metal flow with minimal impurities
Consistent, repeatable casting results
Reduced metal loss and rework
Improved productivity and casting quality
Superior casting quality compared to top pouring systems
Ideal for high-value precious metal jewellery
