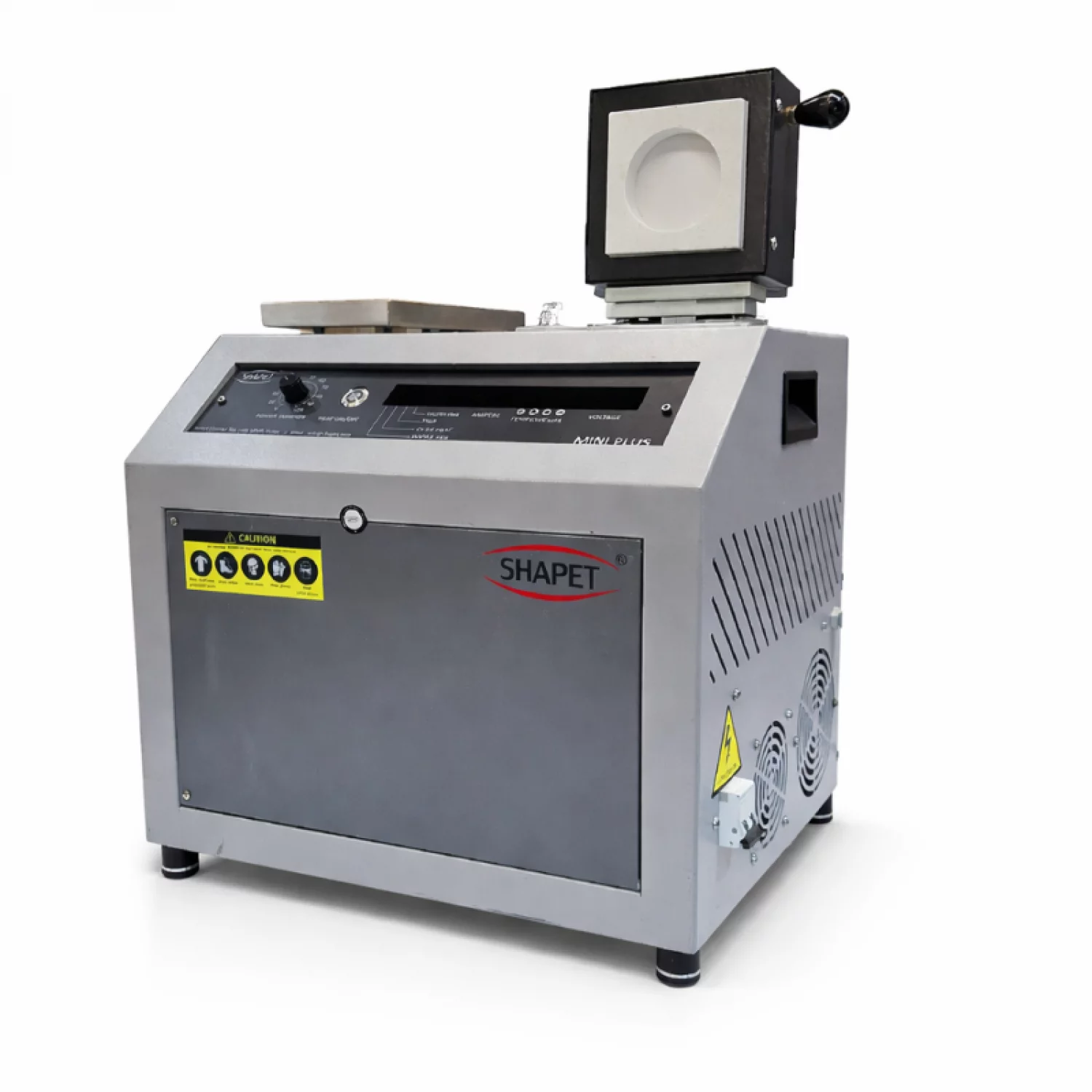

Mini Plus Melting Machine

AvailabilityIn Stock
CategoryGold Melting Machine
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Mini Plus Melting Machine Details

The Mini Plus Melting Machine by Shapet Induction Pvt Ltd is a compact, energy-efficient, and high-performance induction melting solution specially designed for jewellery showrooms, workshops, and small-scale melting operations. Built with advanced induction heating technology, this single-phase table top model offers fast and uniform melting while occupying minimal space.

Designed for convenience and productivity, the Mini Plus is ideal for melting gold, silver, and other precious metals in small quantities ranging from 250 grams to 1 kg. Its compact design, user-friendly operation, and in-built cooling system make it the perfect choice for jewellery retailers and manufacturers looking for a reliable showroom melting machine.

Specification

Power SupplierSingle Phase
Voltage230 V/Ac
Absorbed Power3-4 Kw
Capacity of Crucible250gm, 500gm And 1Kg
Maximum Temperature1150 °C
Melting Time10-12 Minutes
Temperature MeasurementDigital K Type
Cooling Water Temperature30 °C
Water Pressure3 Bar
Maximum Water Flow3 Lit/Minues

Dimension & Weight

Dimension(mm) L x B x HWeight(kg - Approx)
Dimension609 X 559 X 584Dimension50net

 Benefits

Induction Heating Technology : Uses advanced electromagnetic induction to heat the metal rapidly and uniformly, reducing energy loss and minimizing oxidation.
Compact & Space-Saving Design : Tabletop layout makes it perfect for small workshops or jewellery store counters without occupying much space.
Precise Digital Controls : Equipped with a digital temperature control and display (often K-type thermocouple), allowing accurate setting and monitoring of melt temperatures — up to approx 1150 °C.
Quick Melting Time : Melting cycles typically take about 4–8 minutes, depending on capacity and metal.
Energy Efficient & Clean Operation : Induction systems are generally more energy-efficient and produce less noise and fumes compared to traditional furnaces.
Safety Features : Many models include over-temperature protection, automatic shut-offs, and safe insulation to ensure secure operation.

Highlights

Induction-based rapid melting technology
Compact and space-saving design
Fast and uniform heating
Precise temperature control
Low power consumption
Minimal oxidation and metal loss
Compatible with high-quality graphite crucibles
User-friendly digital control panel
Safe and reliable operation

Related Products

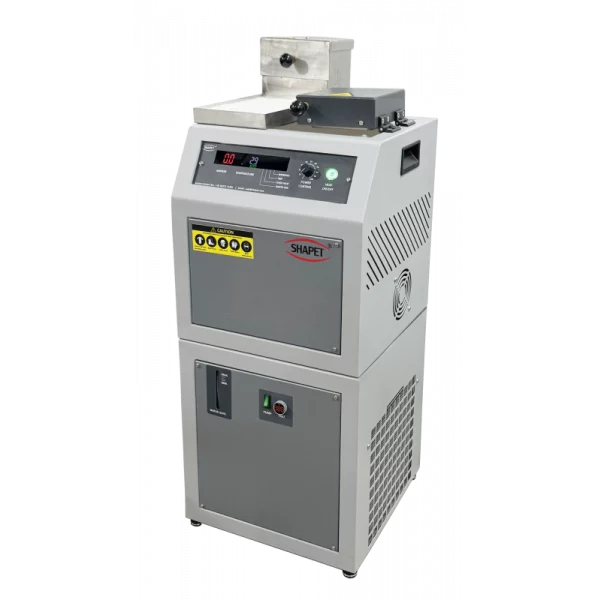

Tower Melting Machine

The Tower Melting Machine from Shapet Induction Pvt. Ltd. is a compact, energy-efficient, and high-performance induction... Continue

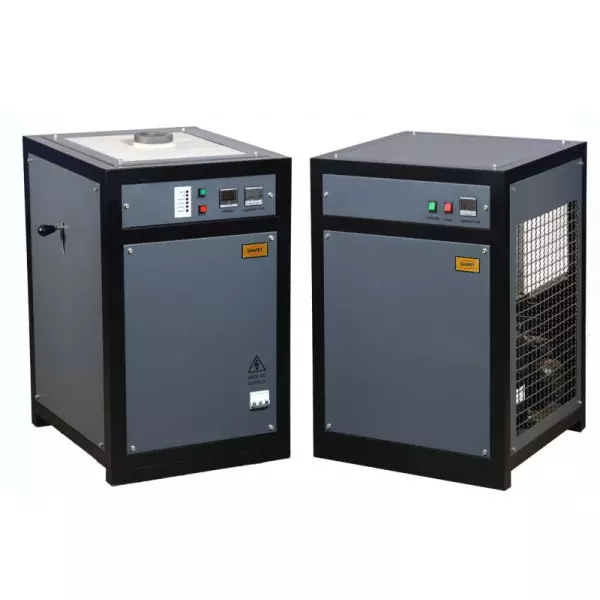

Superior Melting Machine

The Shapet Superior Three Phase Induction Melting Machine is a heavy-duty, high-performance melting solution designed fo... Continue

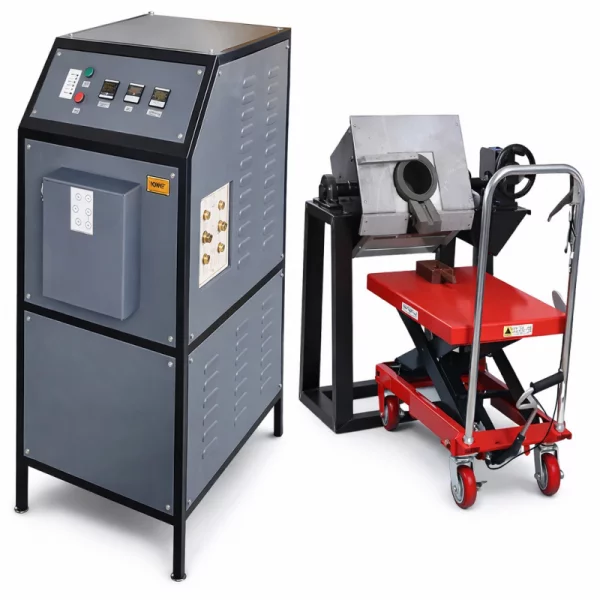

Heavy Induction Gold Melting Machine

The Heavy Duty Induction Gold Melting Machine is a high-performance melting solution engineered for continuous, large-ba... Continue
